Conquer The Terrain

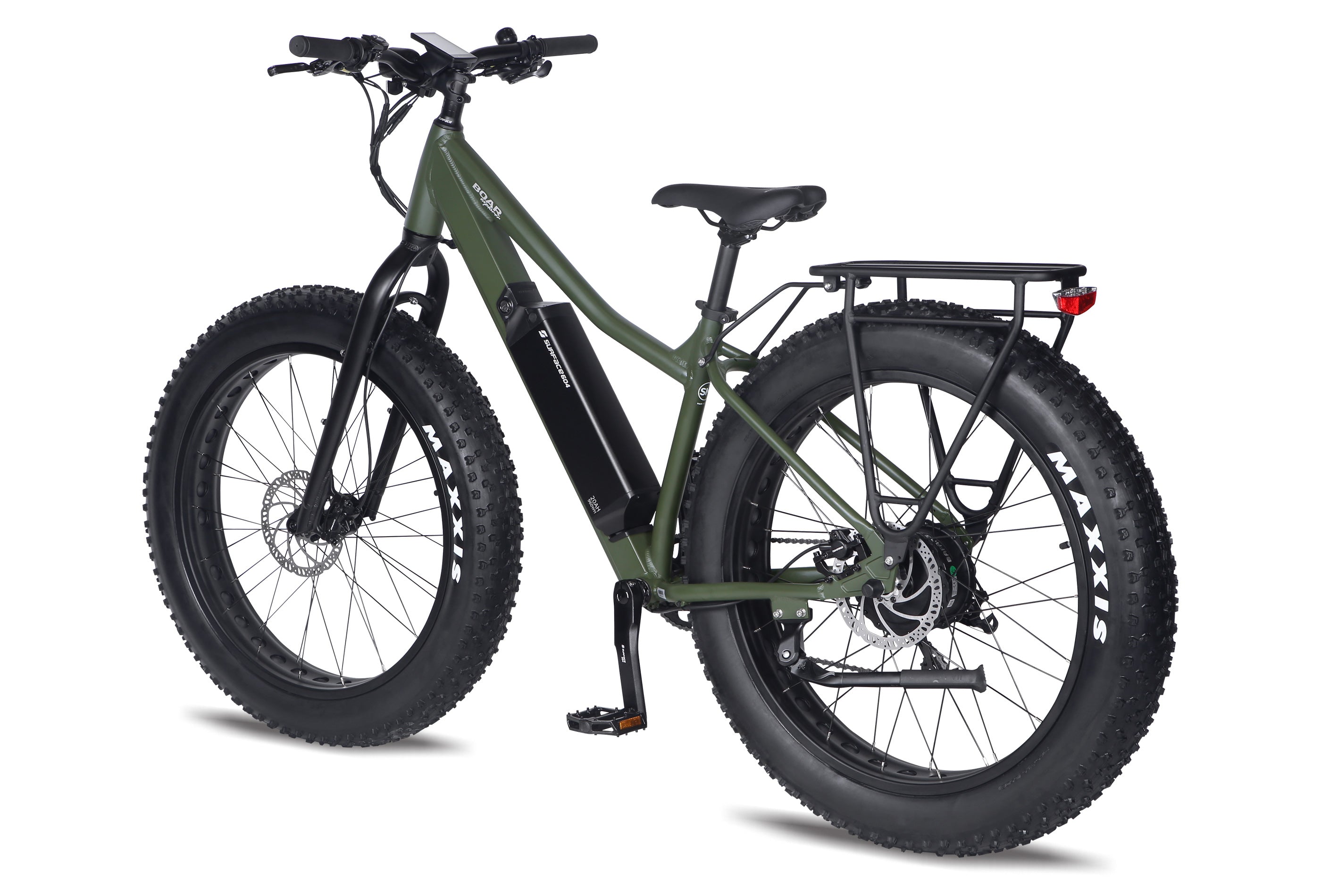

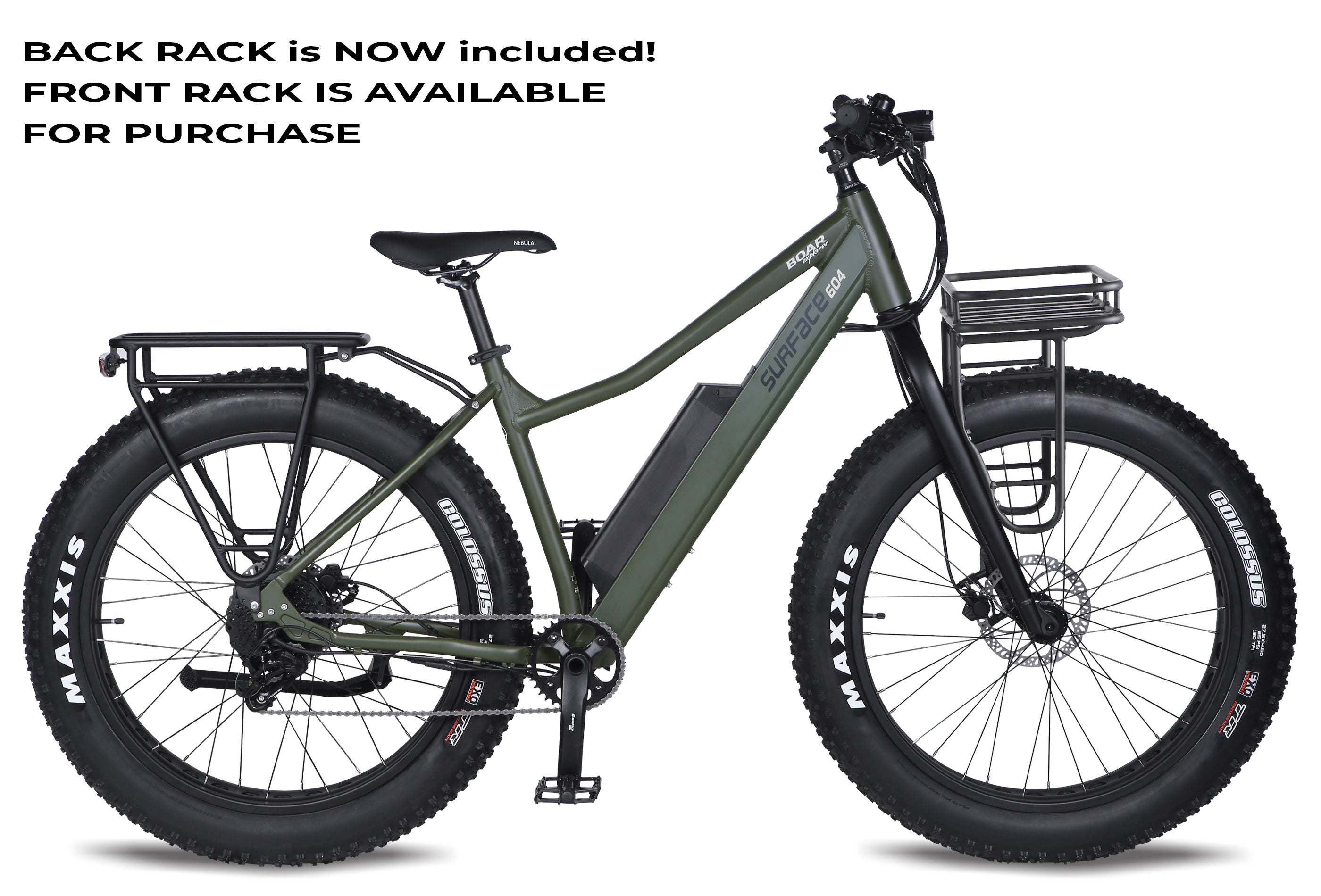

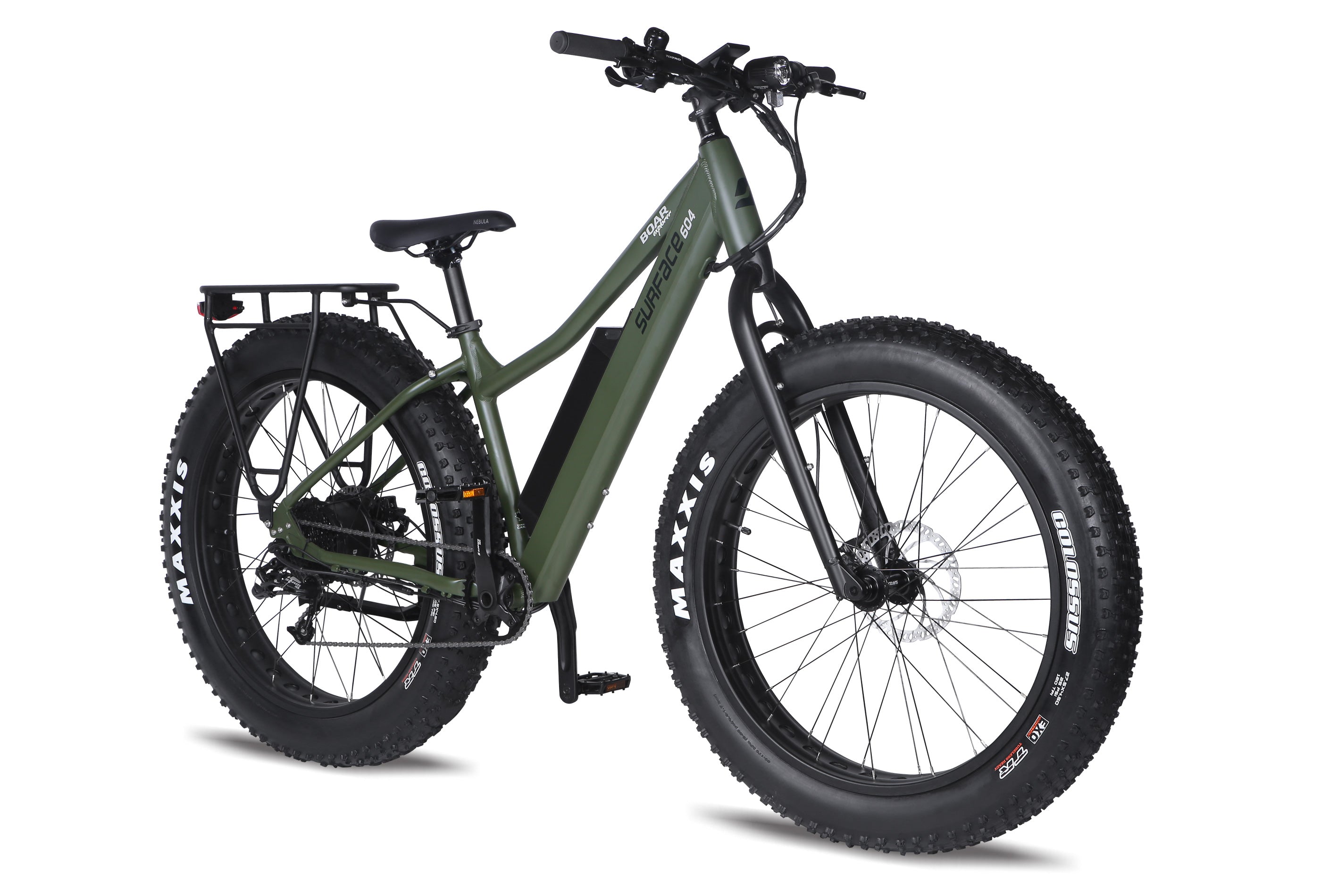

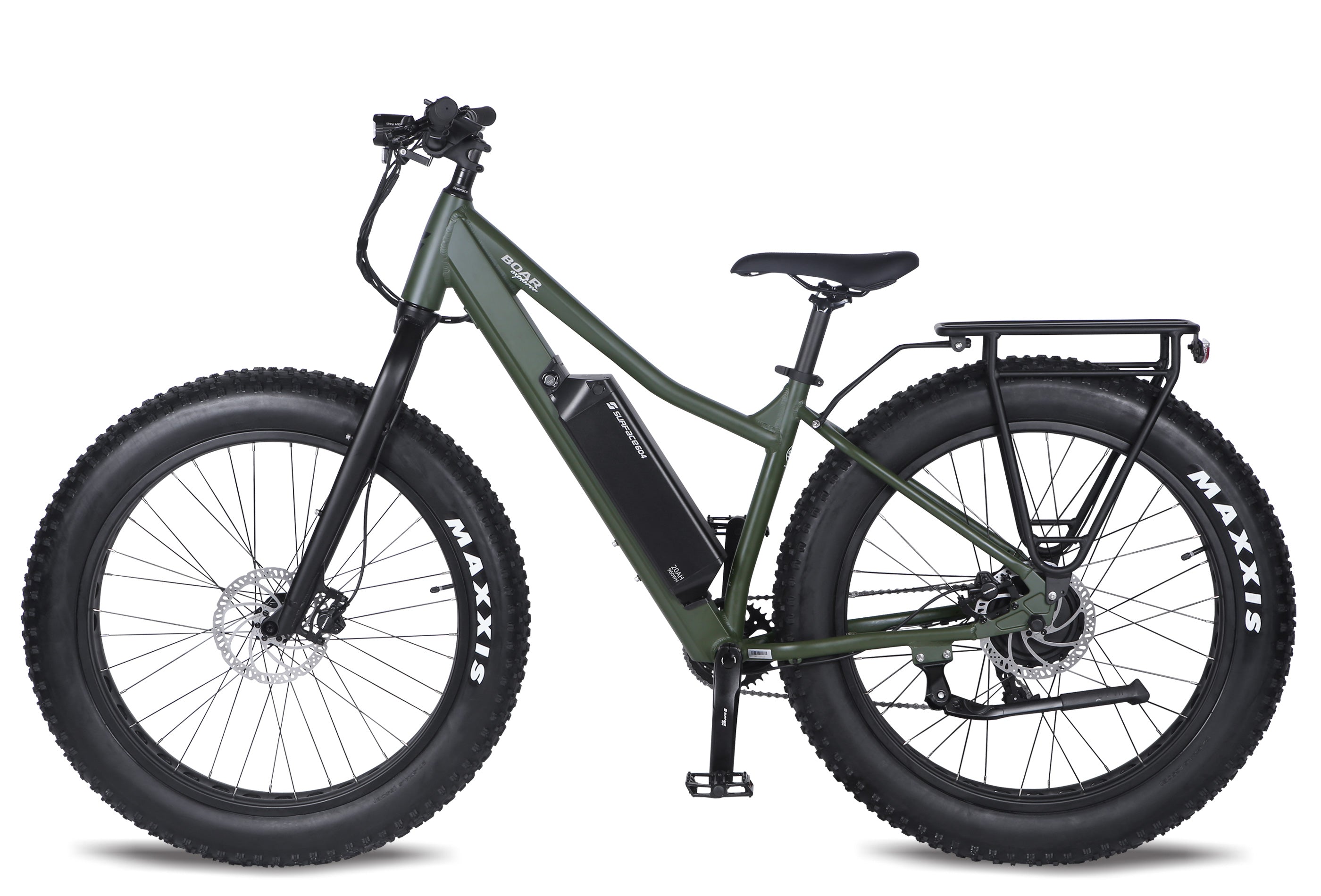

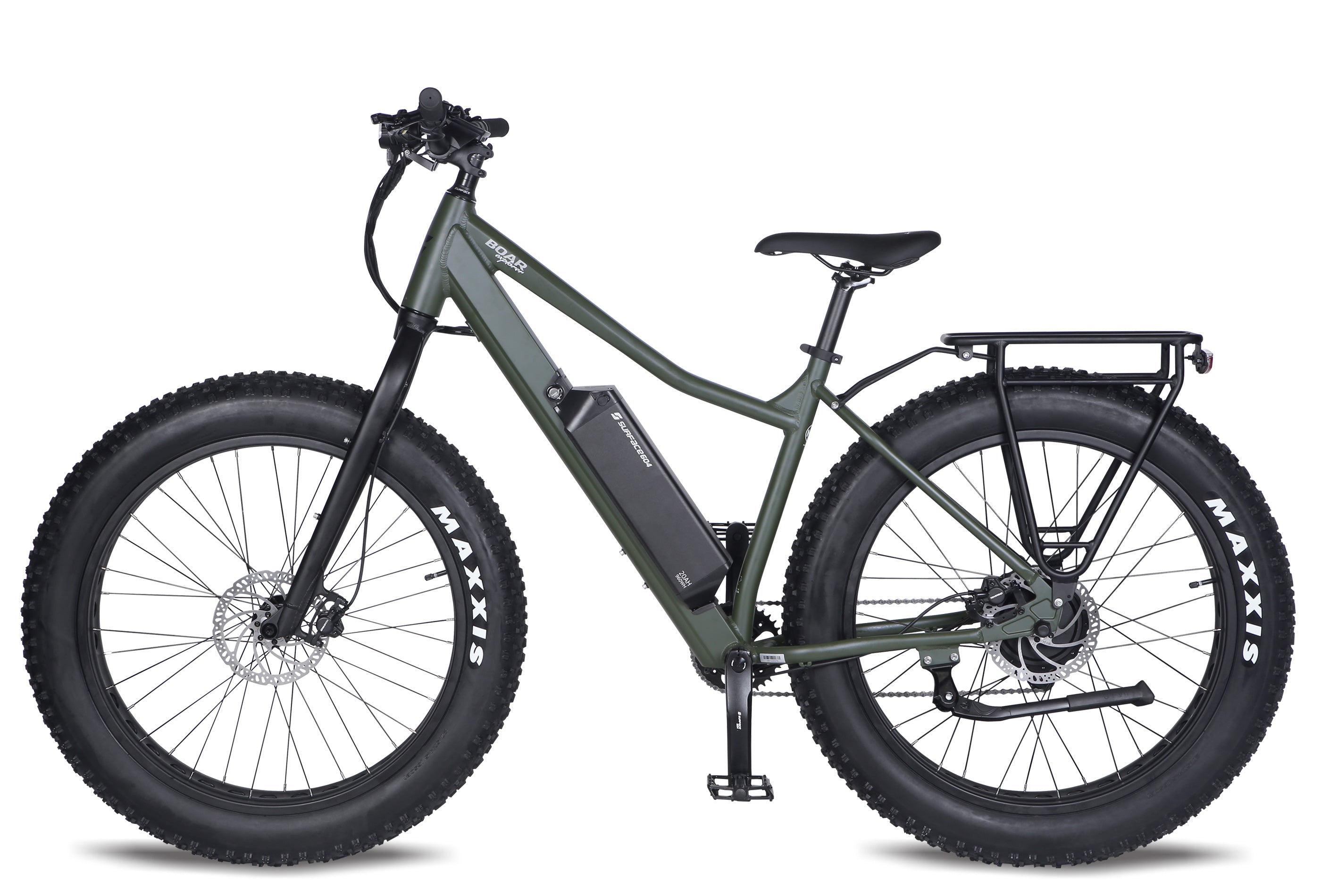

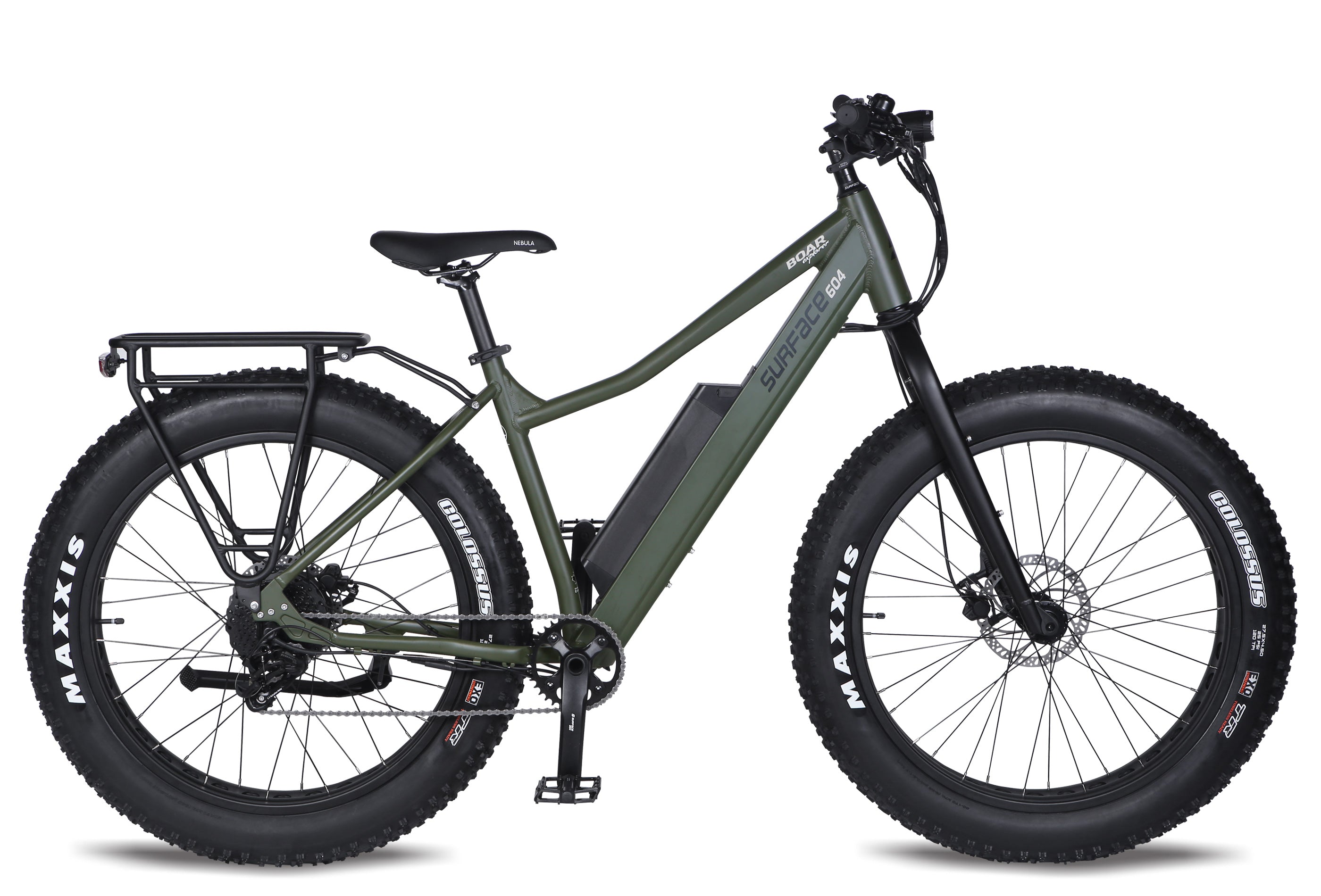

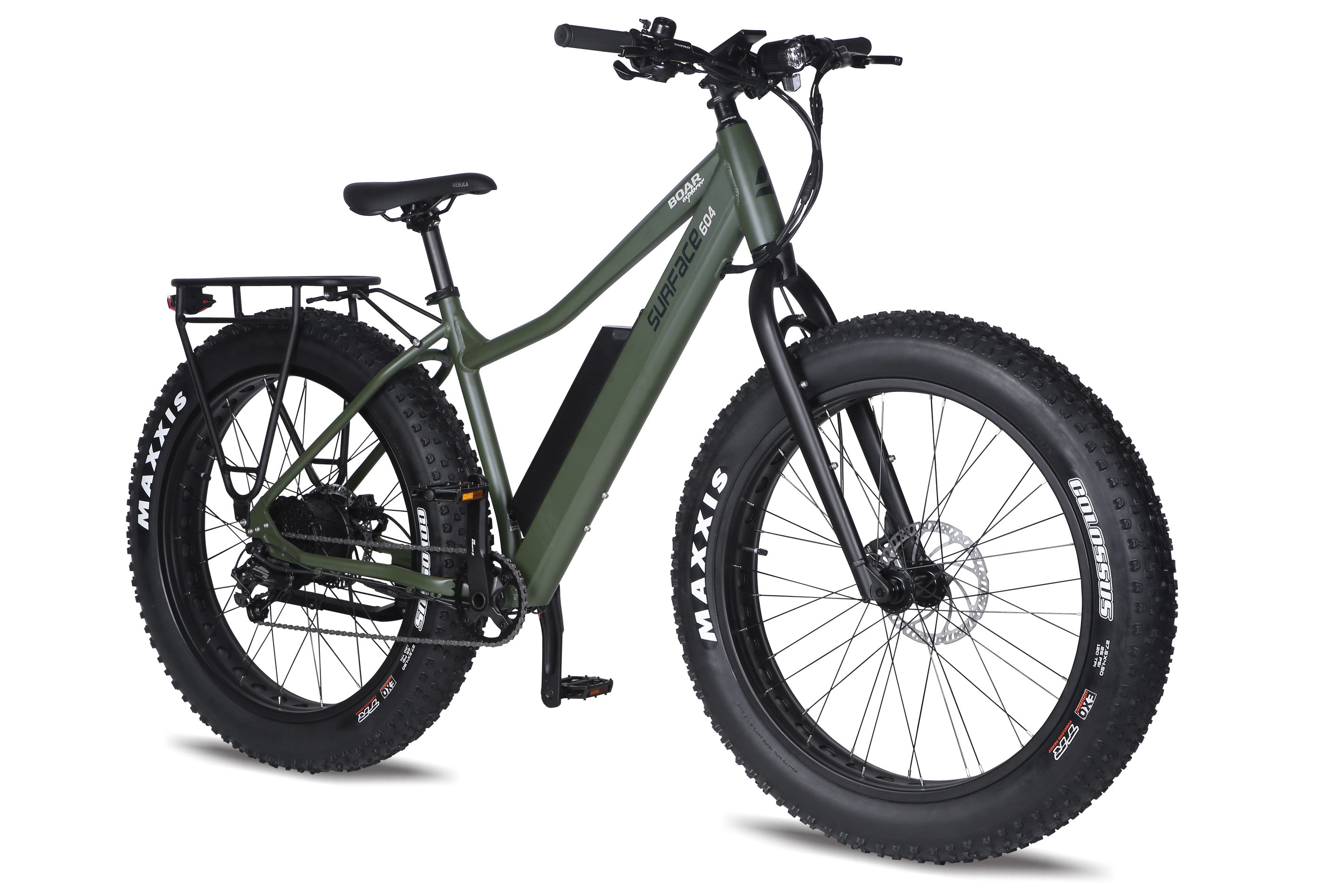

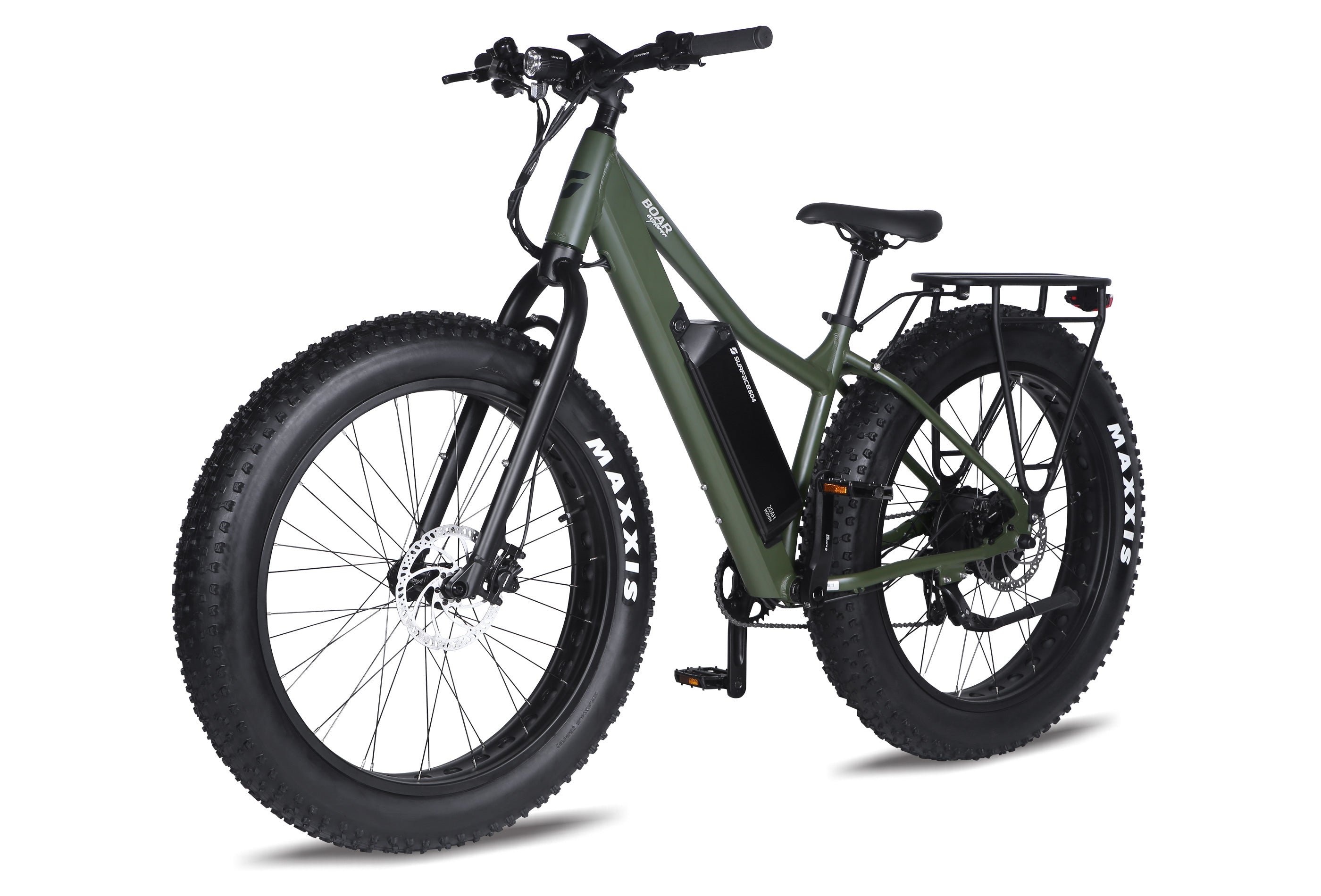

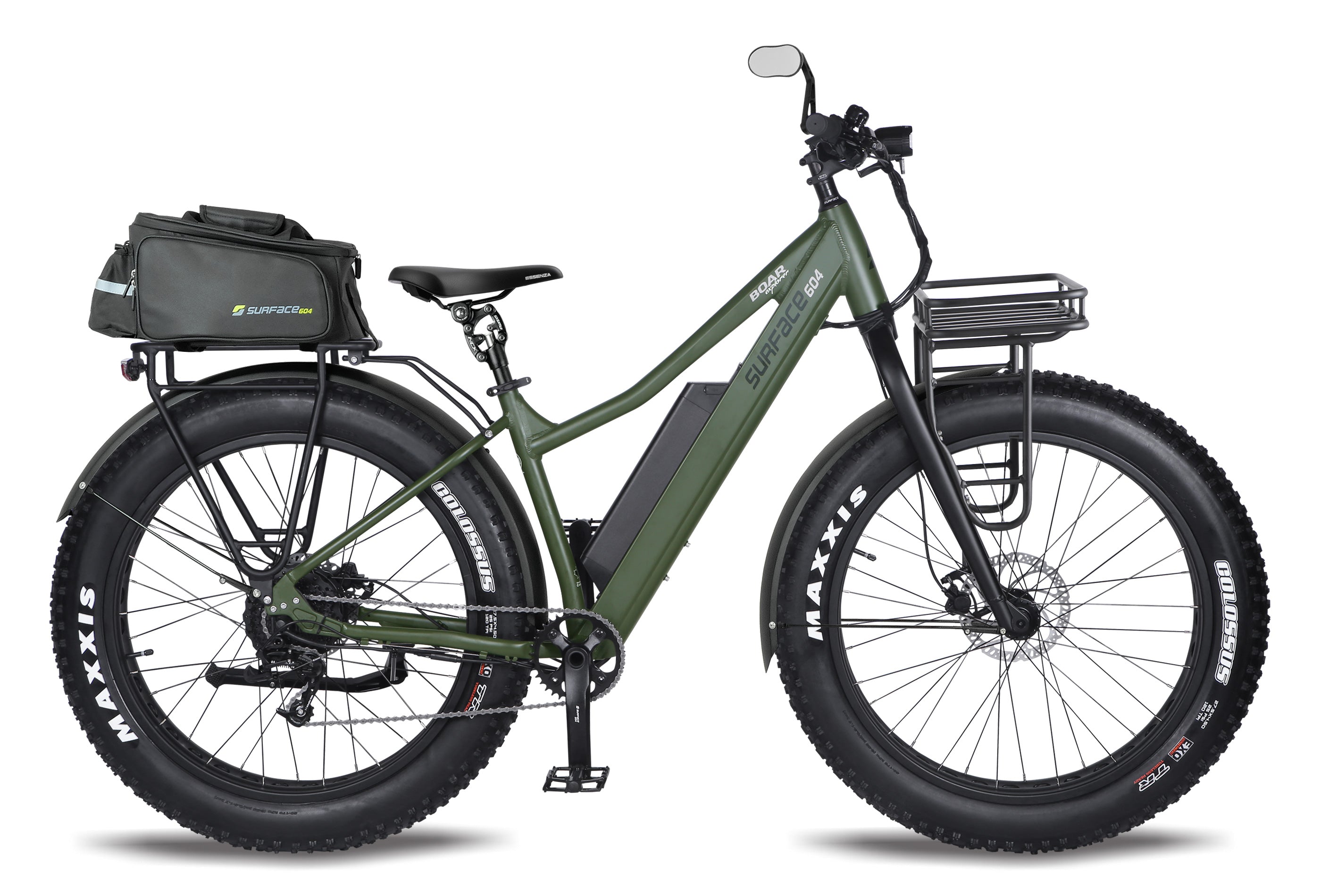

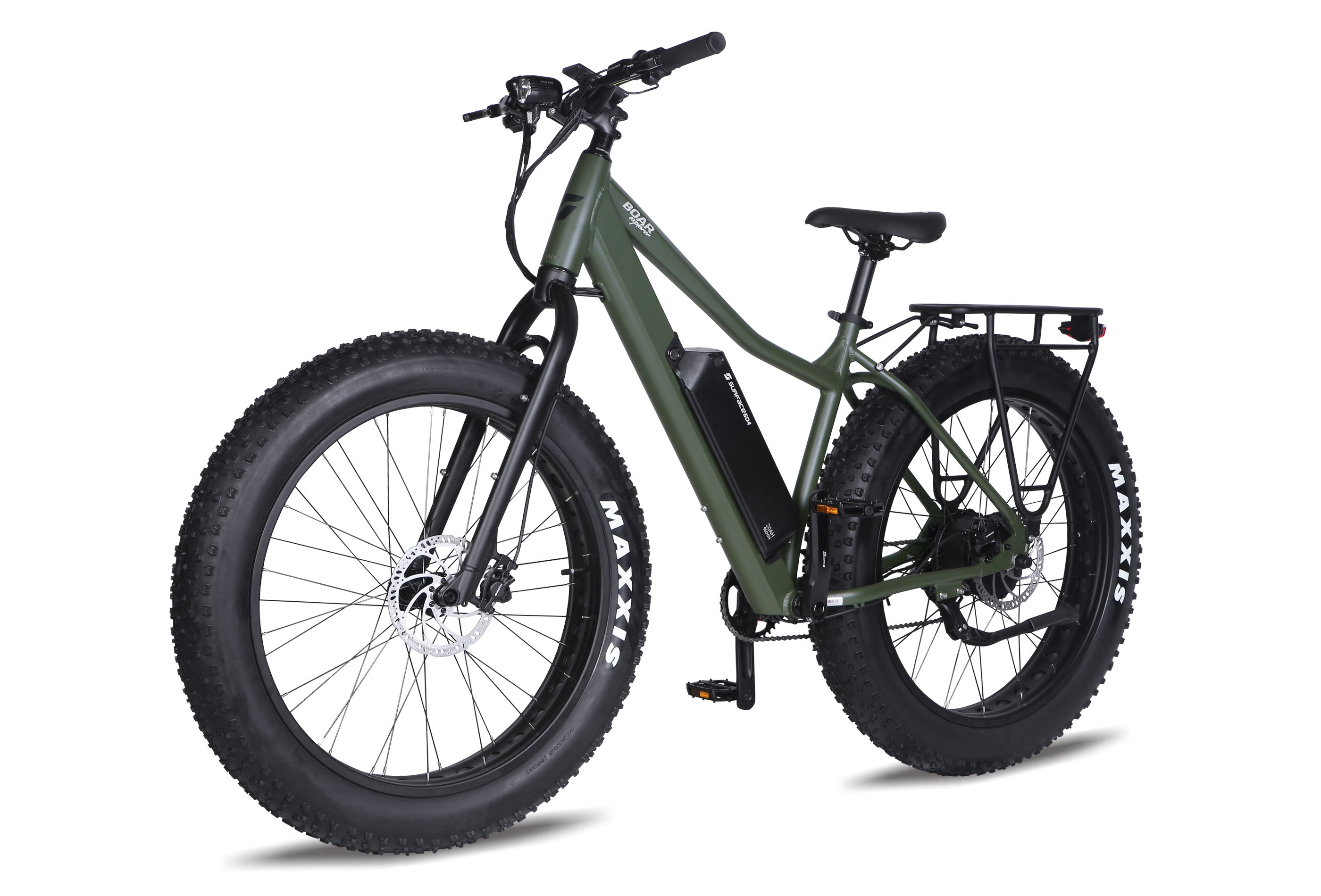

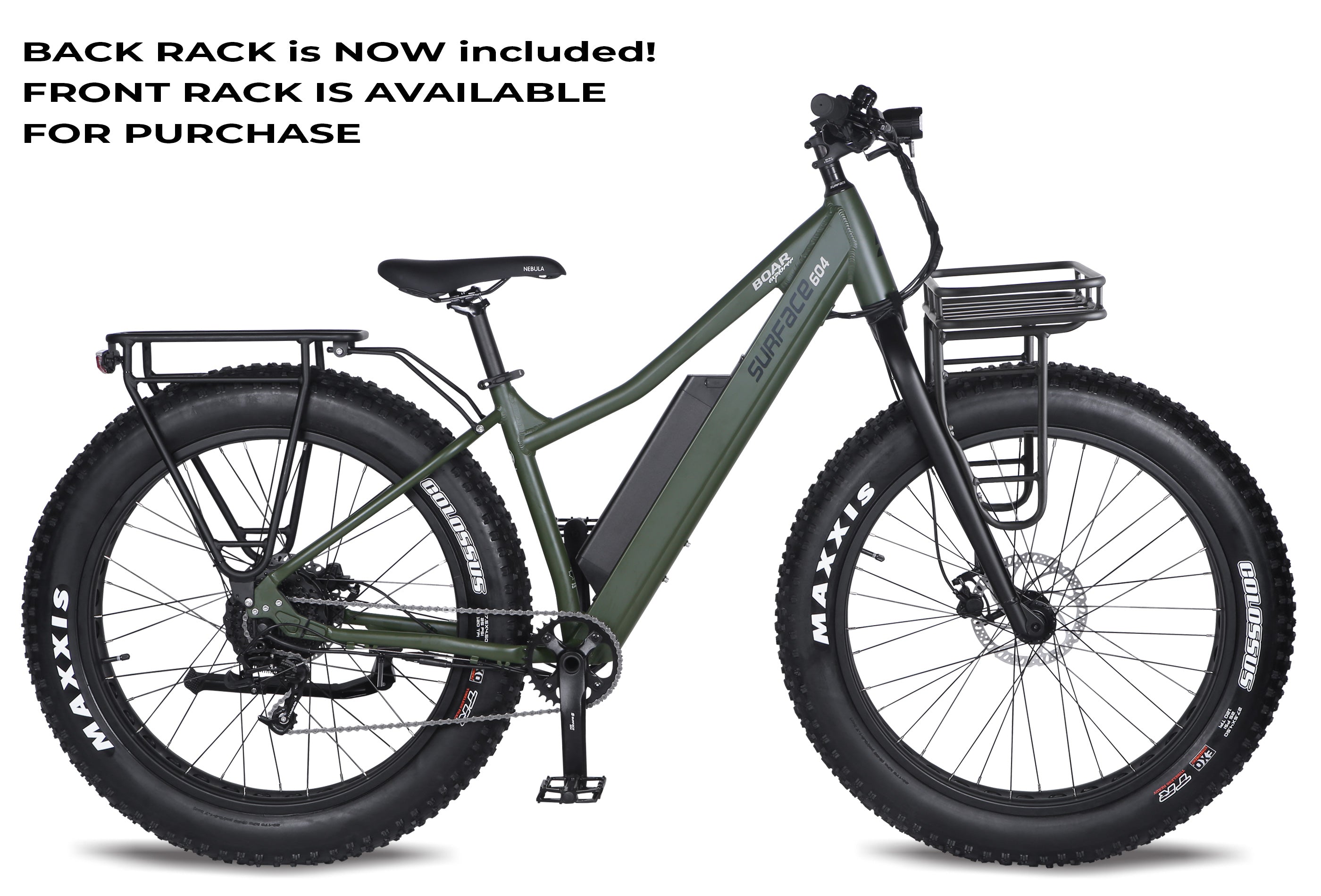

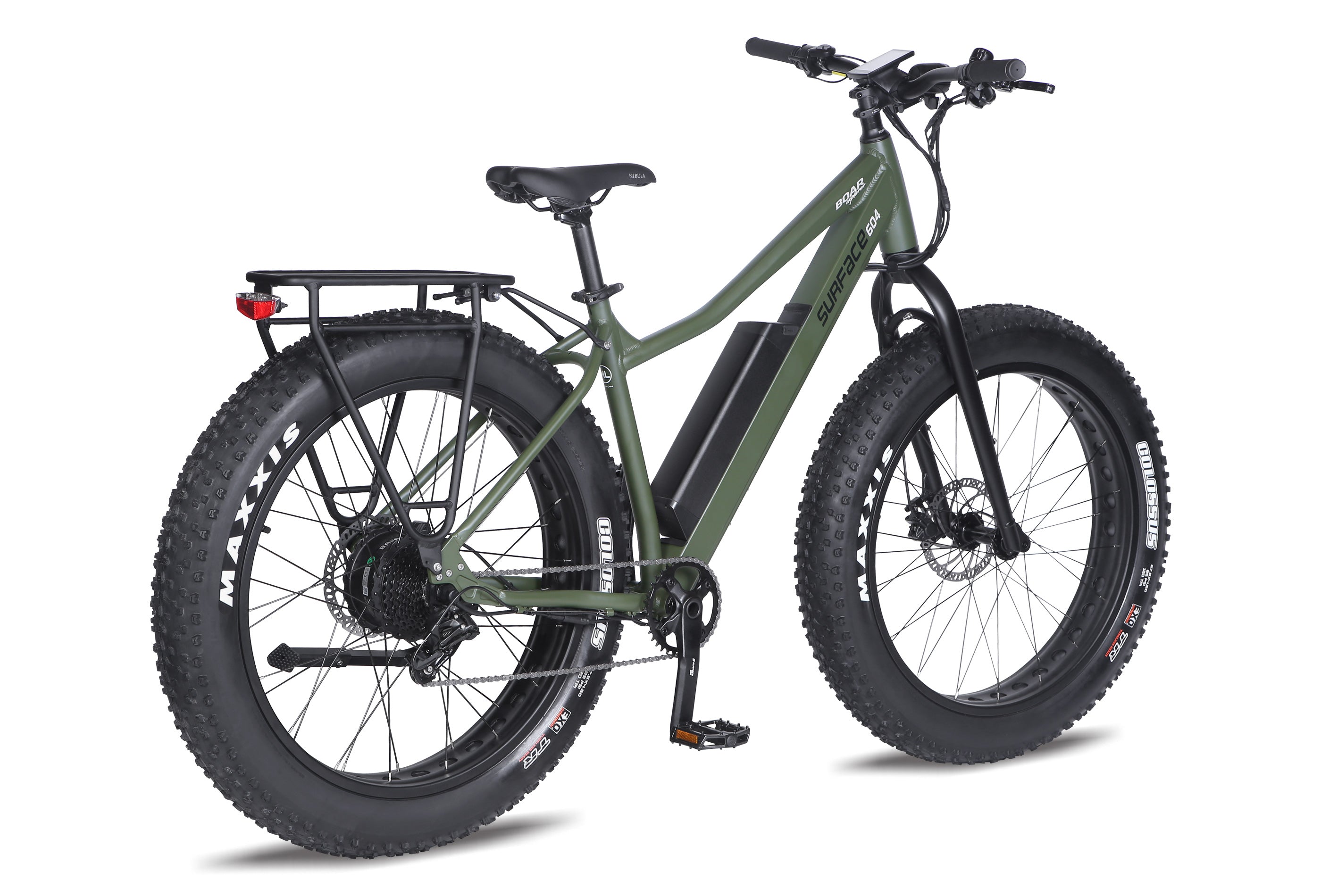

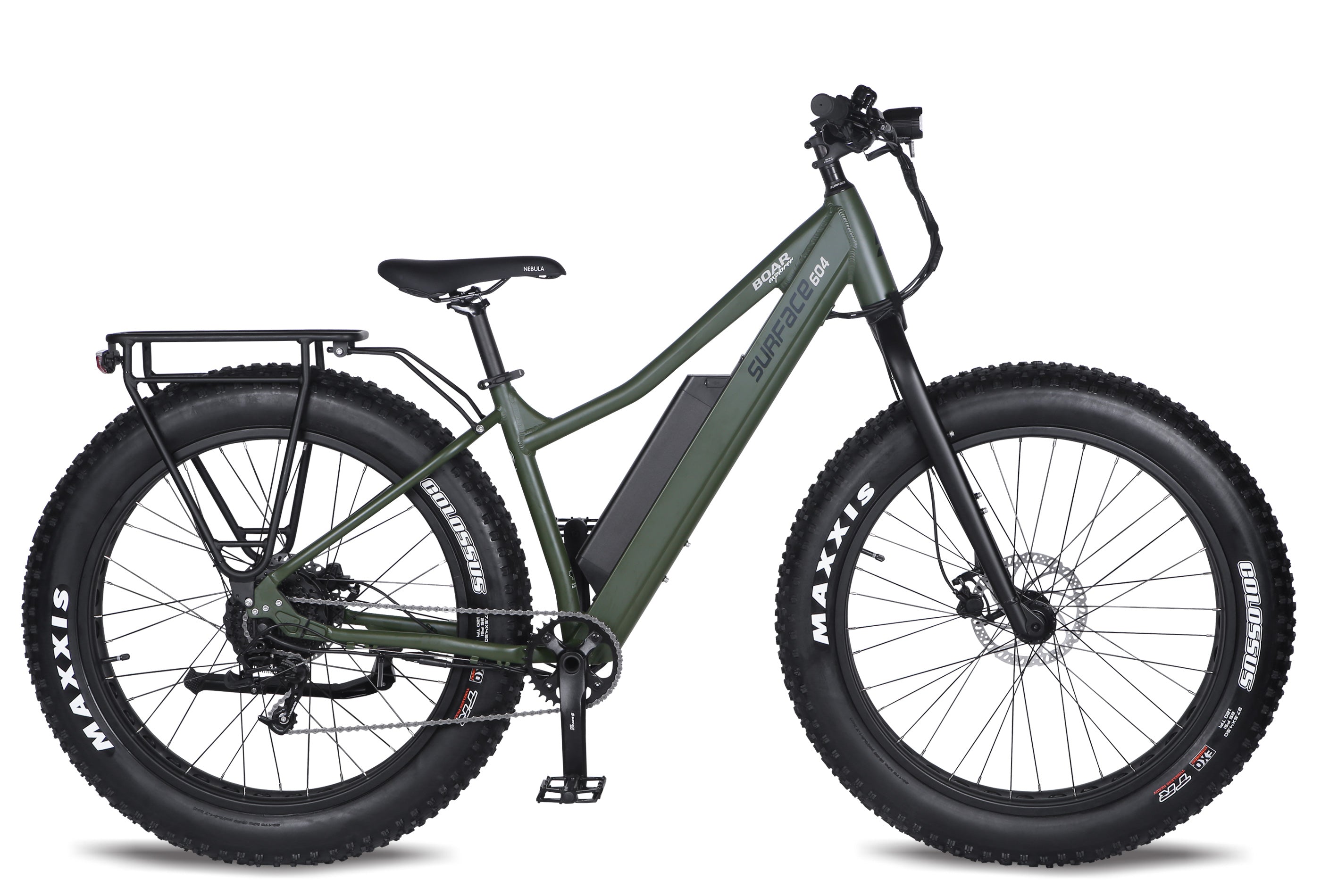

Meet the Boar Explorer, a lightweight and rugged fat tire e-bike built for adventure. Powered by a 500W motor and a 48V 14Ah battery, it offers up to 45 miles per charge. The Boar Explorer is perfect for both trail exploration and urban commuting, providing a smooth, powerful ride in any weather condition.

Designed to handle rain, snow, and ice, the Boar Explorer features durable fat tires for excellent traction. It comes with 180mm hydraulic disc brakes for reliable stopping power and integrated LED lights for enhanced visibility. Whether you're navigating city streets or venturing off-road, the Boar Explorer is your dependable companion for all terrains.

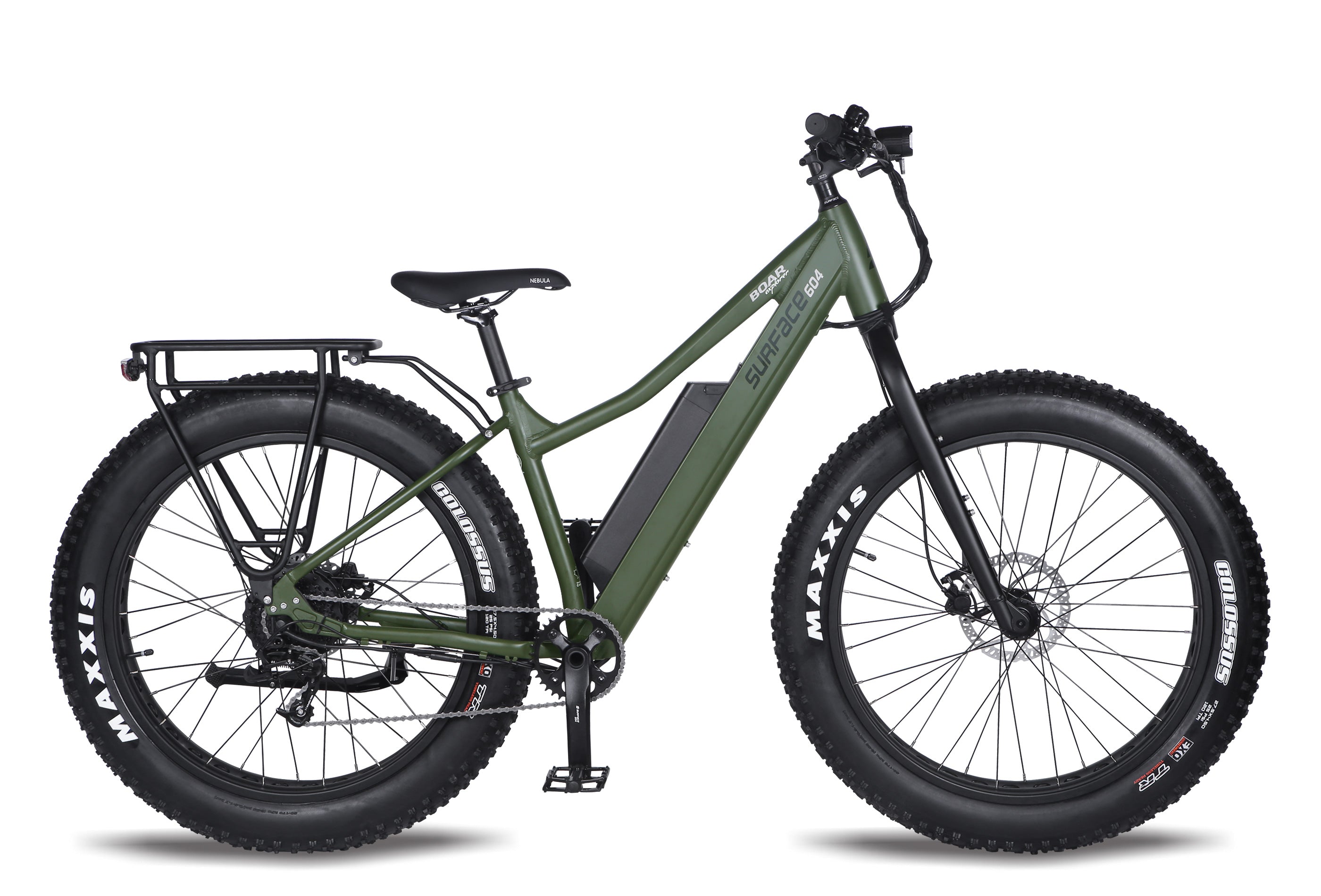

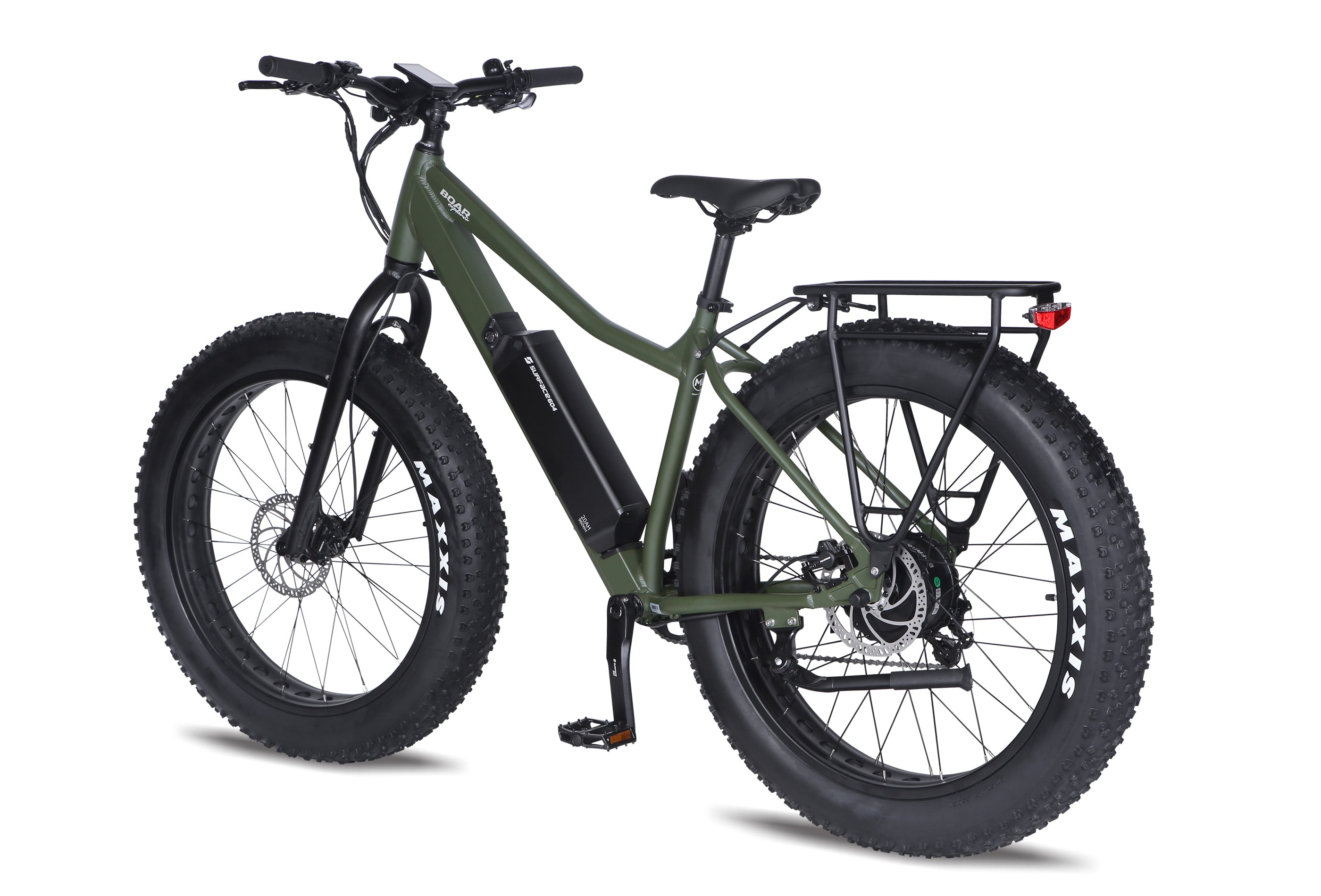

BOAR EXPLORER

Key Technical Specs

Maxxis Colossus 27.5×4.5 Exo Tr
Tektro Auriga Hydraulic Disc Brakes With 180mm Rotors
Shimano Alivio 9-speed Drivetrain
Torque Sensor System
Sr Selle Royal "Nebula" Gel Saddle
Large Fixed-color Led Display With USB Jack
27.5" X 100mm Single Wall Aluminum Rims With Cutouts

Deeper Details

Drive System
Motor
High Torque 500W (Peaks At 750W) Fat Bike Specific Bafang geared hub motor
Drive Mode
Drop Out Torque Sensing Pedal Assist with a Throttle
Throttle
Thumb Push Activated Throttle
Torque
80Nm of Torque
Controller
SURFACE604 Designed 12 MOS 48V 500W 25Ah, Smart Controller
Motor Wire Harness
30Ah, can handle up to 120C current (upgraded)
Electronics
Battery
Included: 48V 20Ah / 960Wh Samsung lithium-ion 21X700mm cells
Battery Range
Upto 65mi (105km) with a 48V20Ah Battery
Battery Charge Time
3-4 Hours for a Full Charge from Empty
Display Type

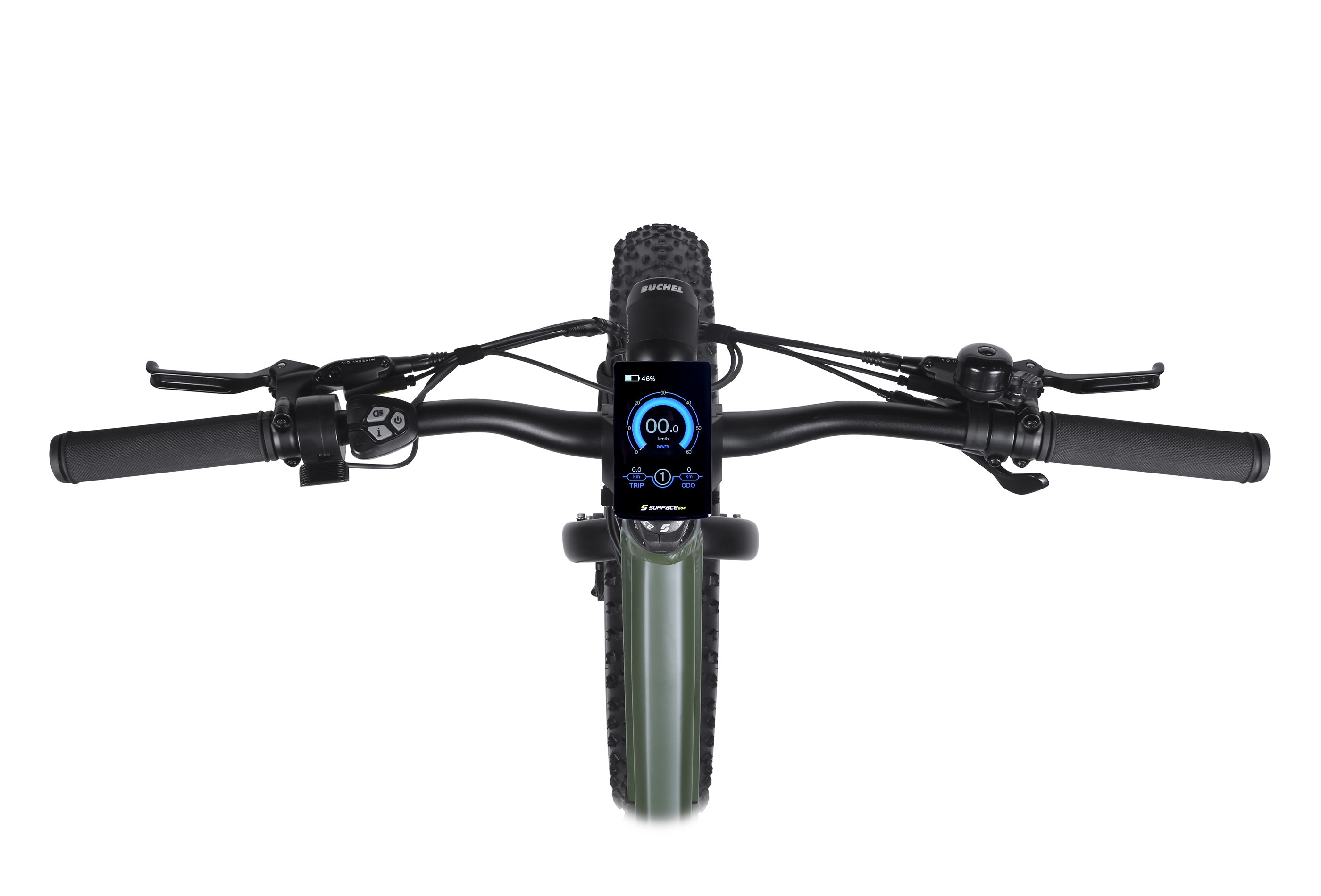

SURFACE604 Color LCD Display with USB Jack Bigger display: 3.5" for 2024
Lights
BÜCHEL "SHINY 120" front headlight
Frame & Suspension
Fork
Proprietary design, straight steerer Custom 6061 Aluminum fork
Frame Type
Straight steerer Headtube, Custom Reinforced Battery Mounts, Internal Cable Routing, Post Mount Brakes
Frame Material
6061 Aluminum Alloy
Stem
SURFACE604 3D forged alloy barbore 31.8mm, height 45mm (New)
Handlebar
PROMAX aluminum, 670mm wide, 6° sweep 35mm rise, 31.8mm clamp diameter
Components
Derailleur
SHIMANO ALIVIO 9-Speed Drivetrain
Cassette
SRAM 9-Speed 11-34T
Shift Levers
SHIMANO ALIVIO
Brakes
TEKTRO AURIGA Hydraulic Disc Brakes, Post Mount 180mm rotor with Motor Inhibitors
Crank Set
SAMOX 36T front sprocket, 170mm crank arms
Rotors
180mm Front/Rear x 2.34mm Thick
Bottom Bracket
SAMOX Sealed Bottom Bracket
Pedals
WELLGO Platform, with Die Casting Body
Chain
KMC 9-Speed
Seat Post Diameter
30.4mm
Saddle
SR Selle Royal "Nebula" High Density Silicon Gel Royal GEL material soft and comfortable
Wheels/Tire

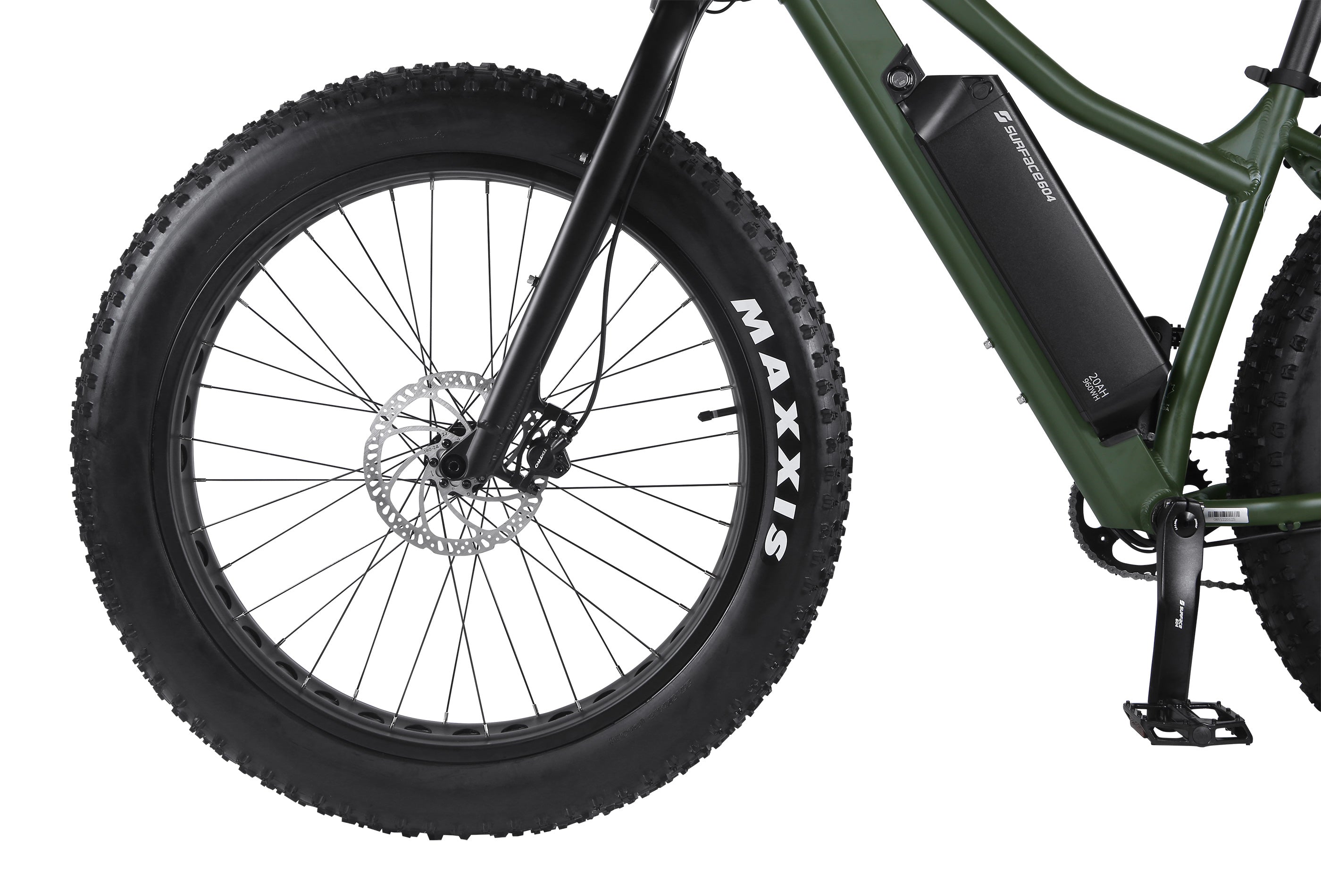

MAXXIS COLOSSUS 27.5" x 4.50", EXO Protection Dual Compound, 1415g (per tire)

Included in the Box

  • Water Bottle Bosses

  • Adjustable Kickstand

What Our Customers Say

Read real reviews and questions from people that have already bought this bike.

See it In Action

Get Decked Out

Want to take your ride to the next level? Hit the road with the accessories and extras you need to get the most our of your bike.

View Accessories
Ride Today

FAQs

How do I find the right bike size?

A rider’s height is the best determinant for size with S/M (17.5” frame) optimal for people 5’2” to  5’7” and M/L (19” frame) ideal for those 5’8” to  6’6”.

How is my bike shipped, and when will it get here?

We ship with FedEx and UPS and it will take approximately five business days for your bike to arrive. Batteries are shipped separately.

Once I receive my bike, how much assembly is required?

The assembly required is minimal and step-by-step instructional videos are available for the Rook/Colt and Boar.
