The Quad was designed for both adventure and style. With a powerful 500W motor and long-lasting battery, this e-bike allows you to explore off the beaten path with ease.

A streamlined, ergonomic design with robust tires and a comfortable saddle ensures you can venture off the beaten path and look great doing it. Whether you're hitting trails or navigating urban landscapes, the Quad Electric Bike will give you a smooth and stylish ride.

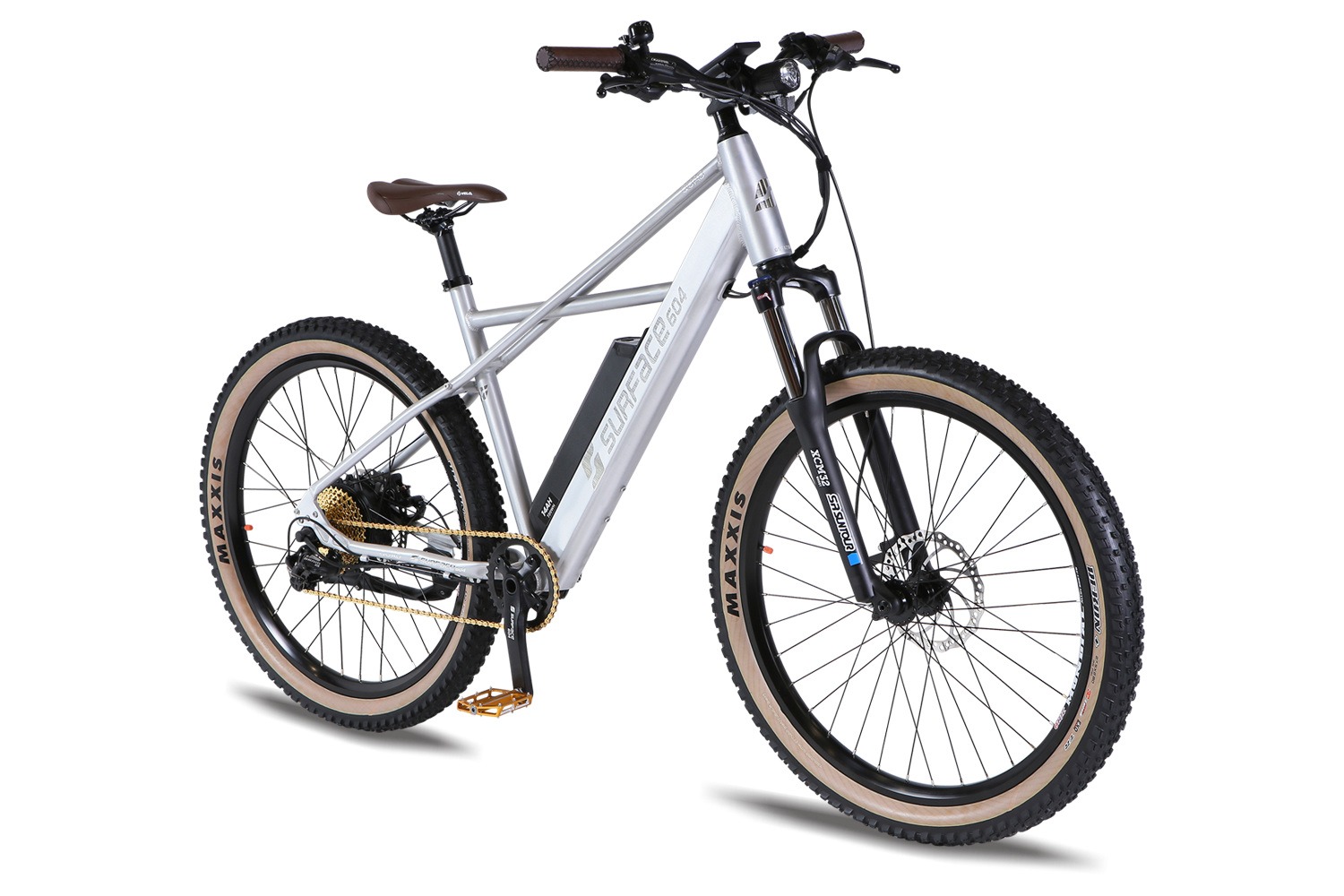

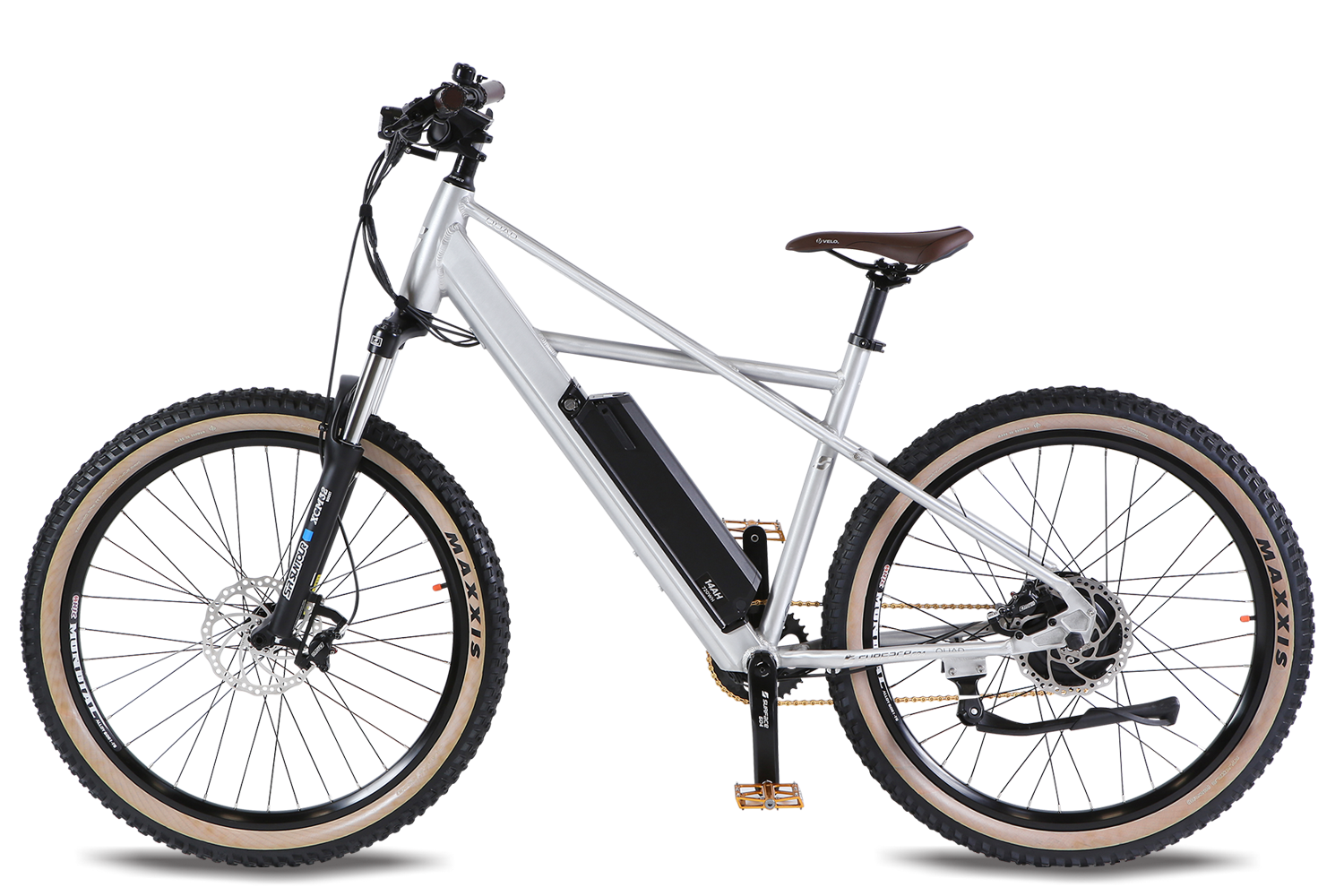

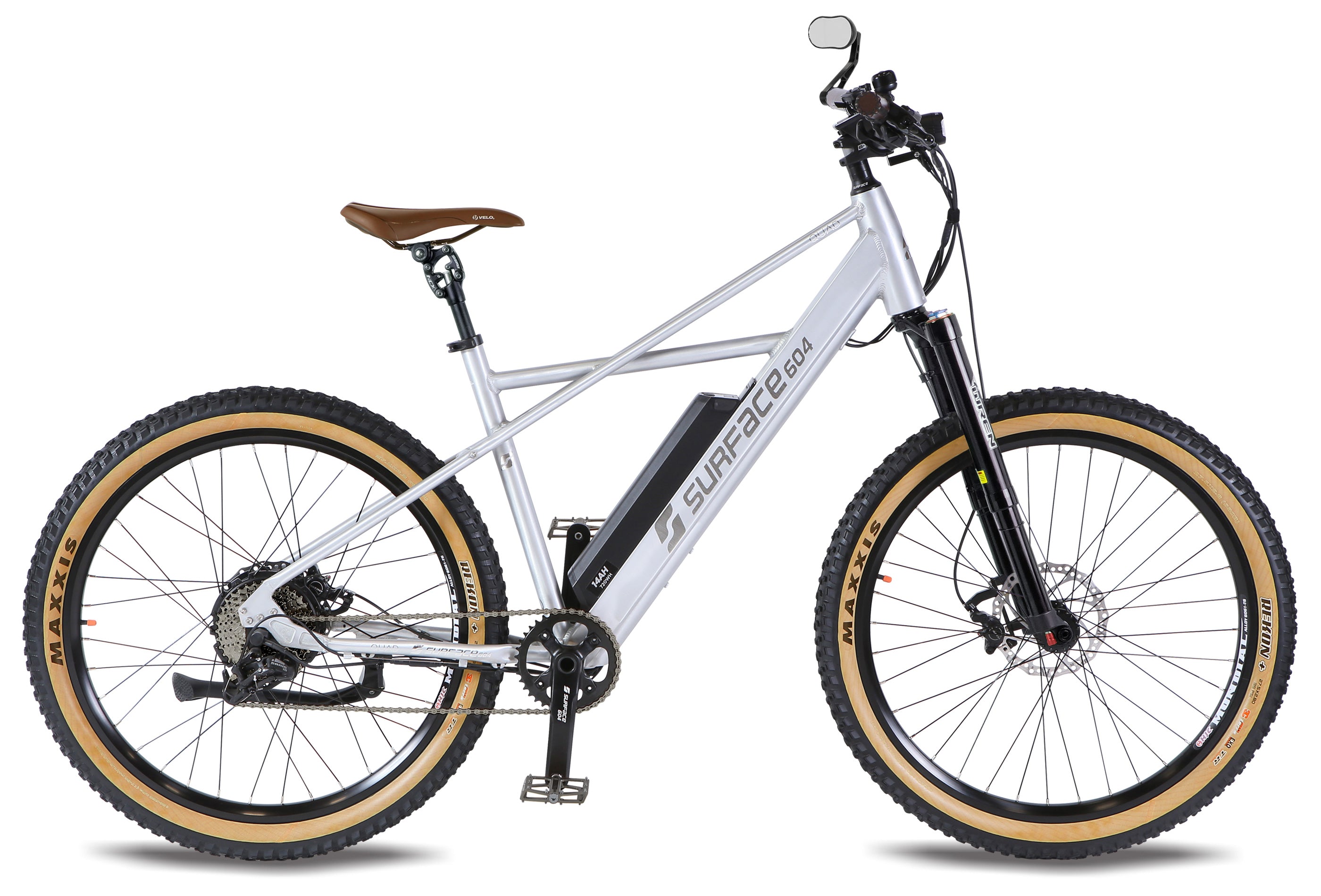

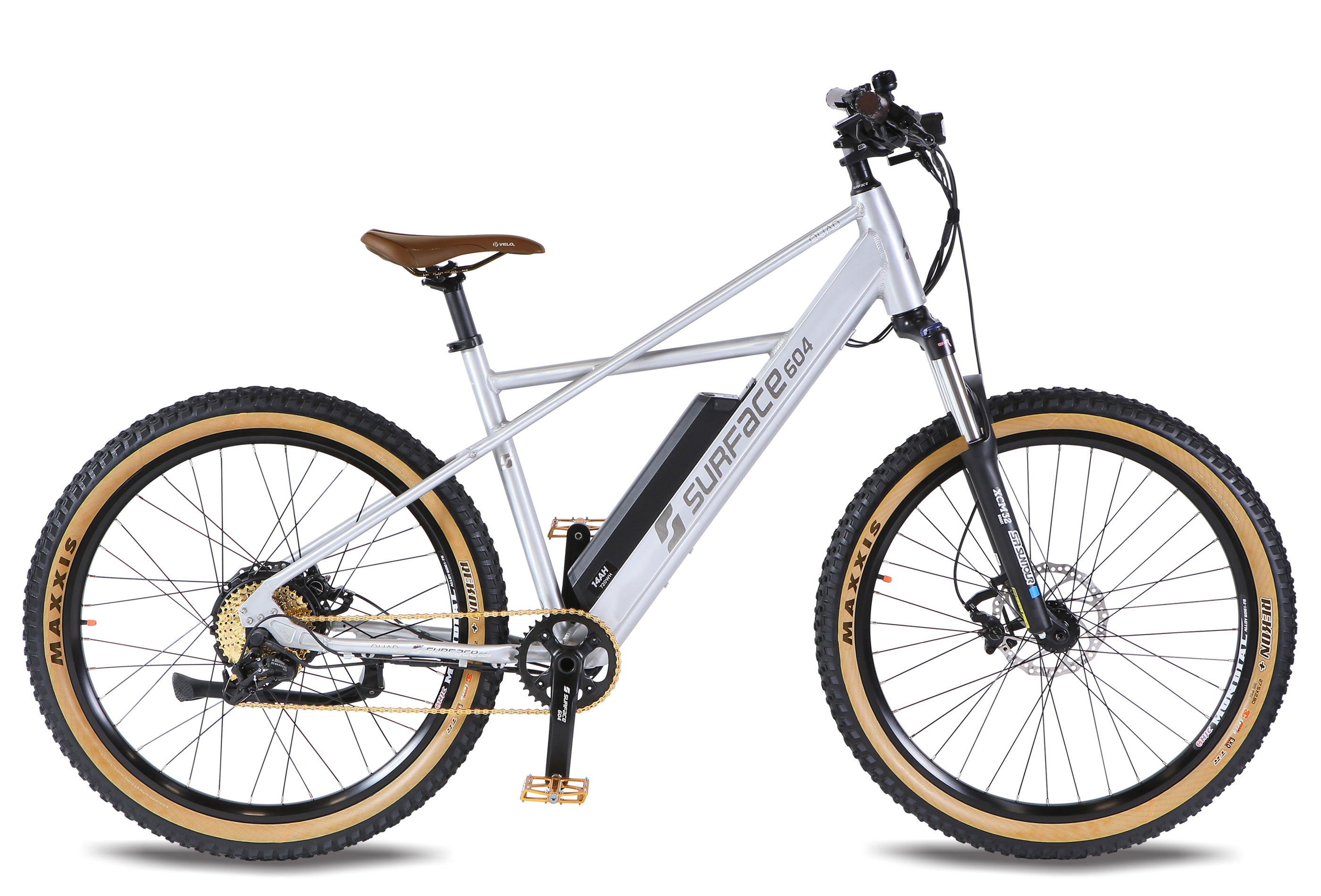

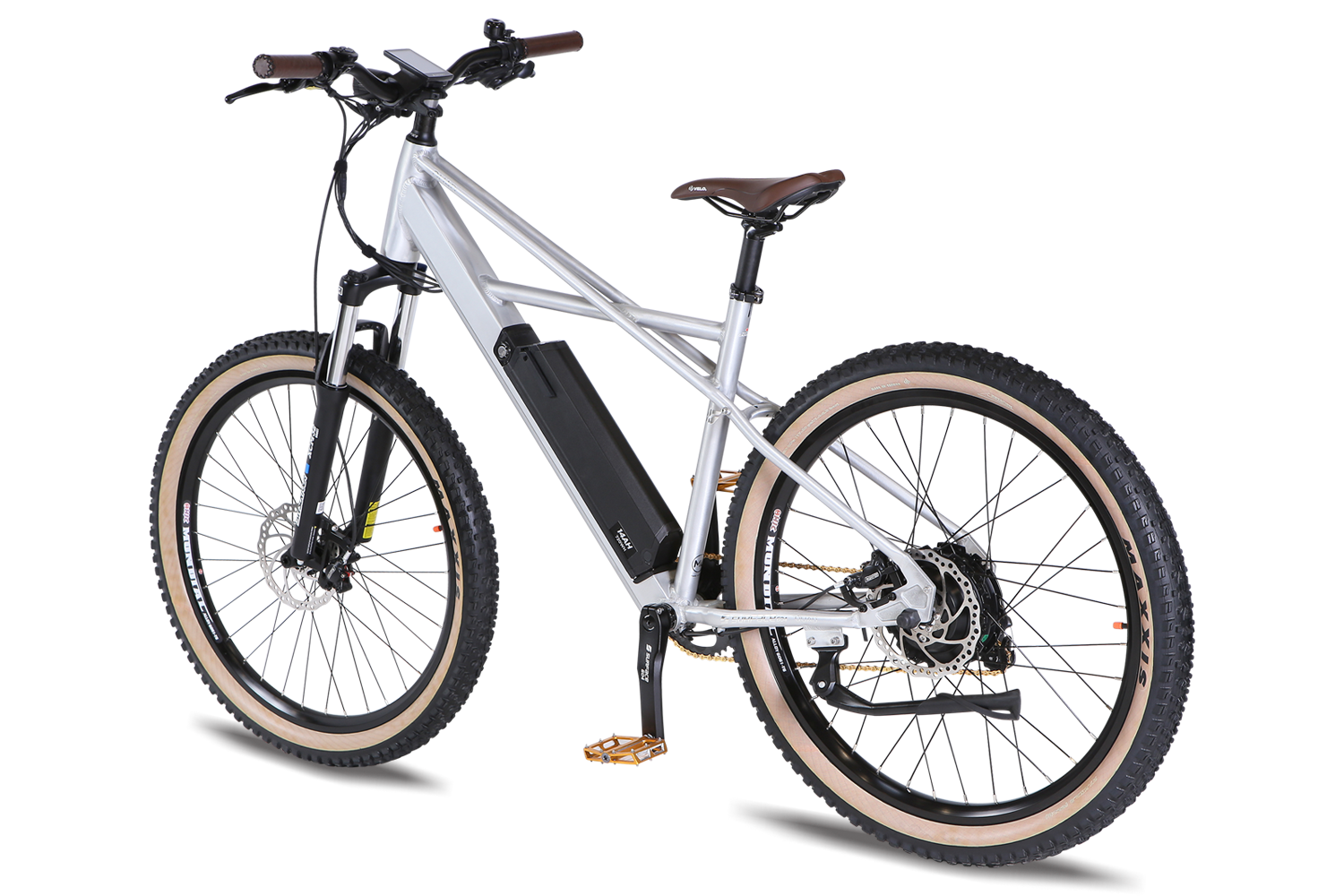

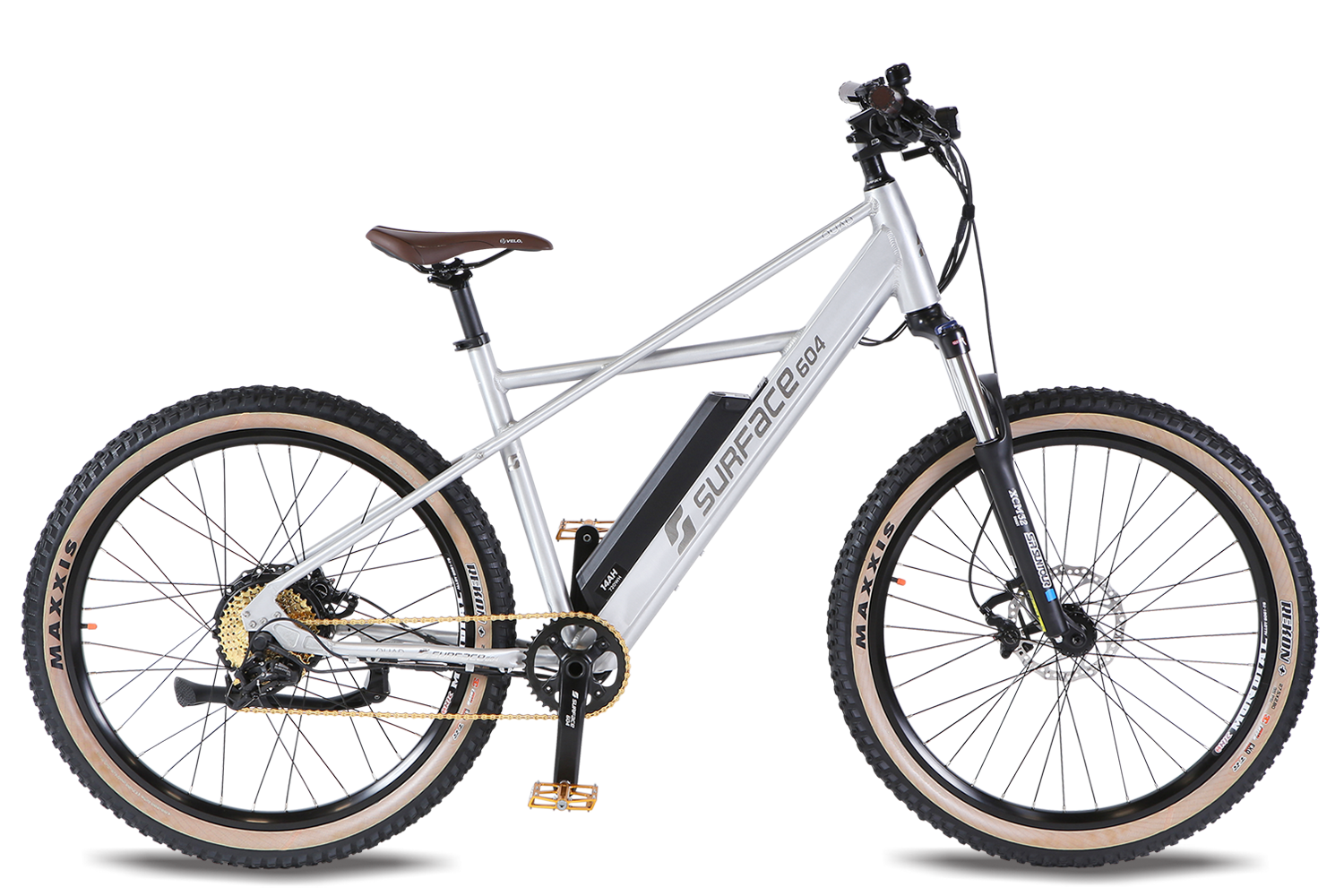

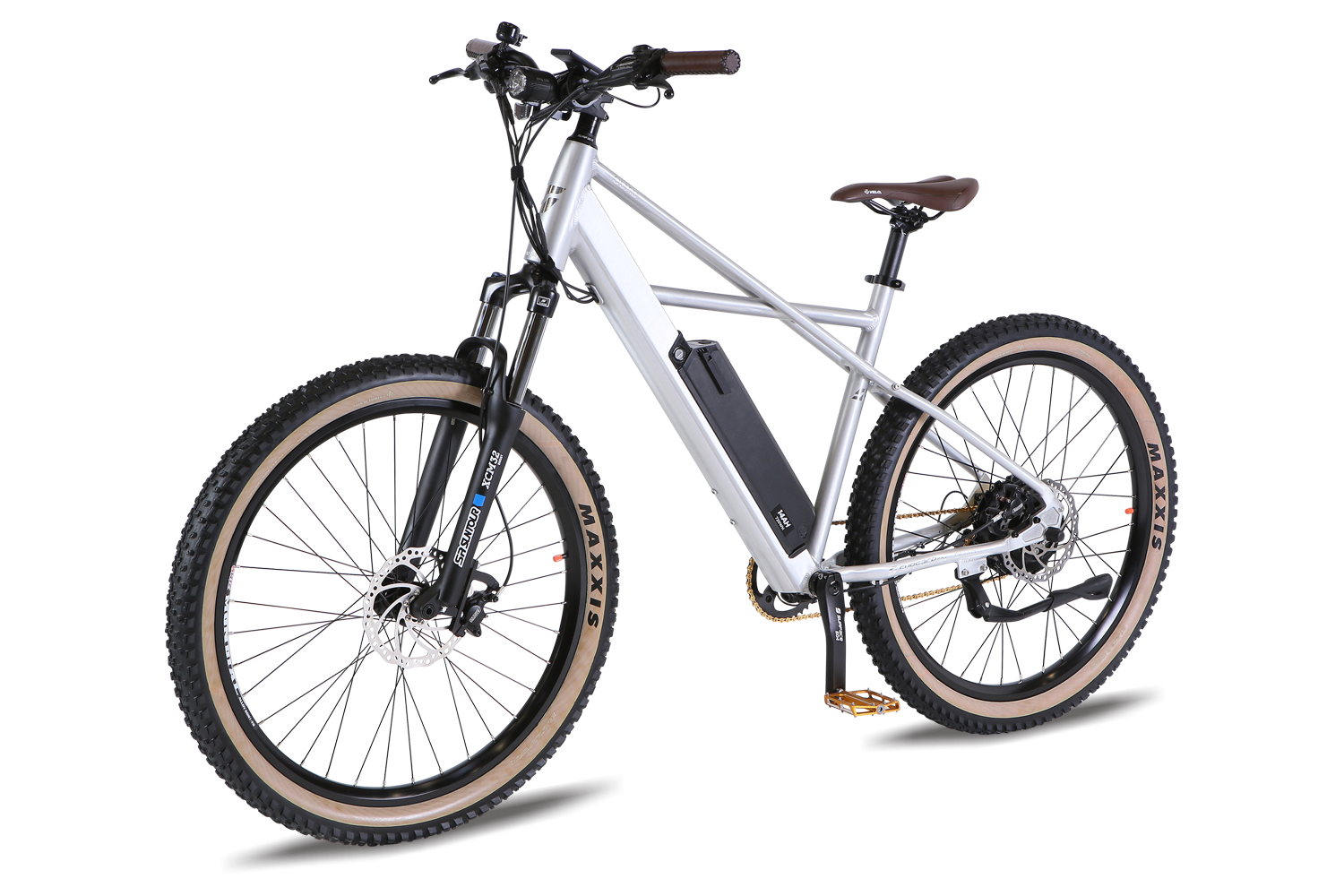

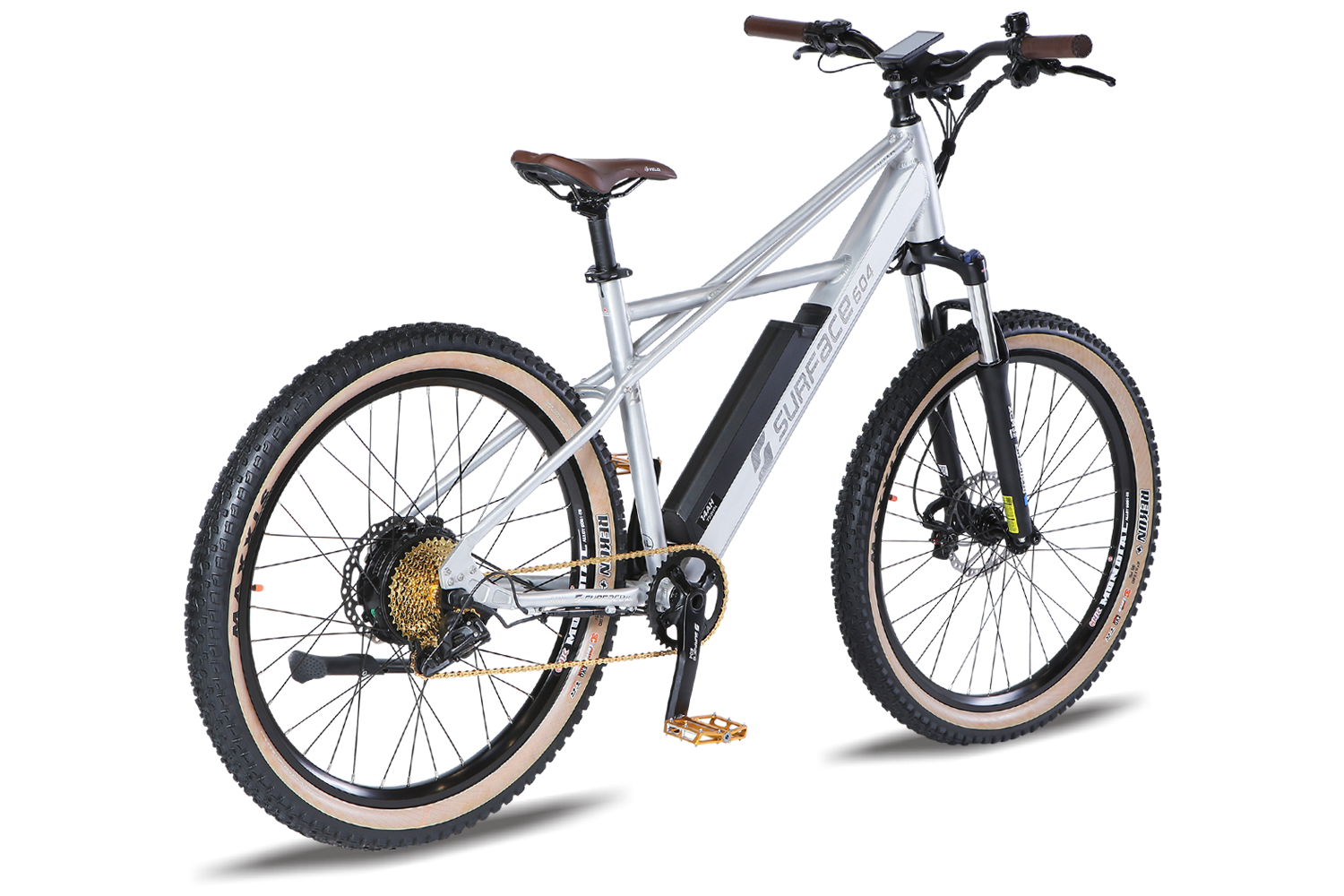

THE QUAD - Electric Mountain Bikes

Key Technical Specs

SR Suntour XCM 32, 29ER Suspension Fork (100mm with Axle Thru Hub)
MAXXIS Rekon+ 27.5” X 2.8” Skinwall Tires (3C, EXO Casing Tech)
Tektro Dorado Hydraulic Piston Quad Disc Brakes EMTB Specific, with Motor Inhibitors
SRAM X5 9-Speed Drivetrain
Torque Sensor System
Velo Ergonomic Streamlined Design
Large Fixed-Color LED Display with USB Jack
Powerful Büchel "Shiny 120" LED Front Light (Included), Rear LED Light (optional)

Deeper Details

Drive System
Motor

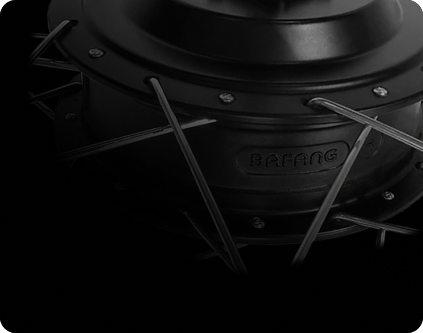

eMTB Specific 500W (Peaks At 750W) Bafang Geared Hub Brushless Motor
Drive Mode

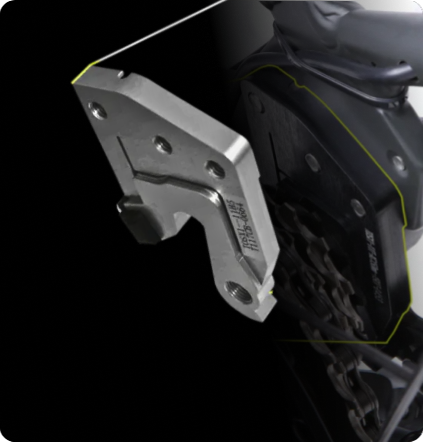

Drop Out Torque Sensing Pedal Assist with a Throttle
Throttle
Thumb Push Activated Throttle
Torque
65Nm of Torque
Controller
SURFACE604 Designed 12 MOS 48V 500W 25Ah, Smart Controller
Motor Wire Harness
30Ah, can handle up to 120C current
Electronics
Battery

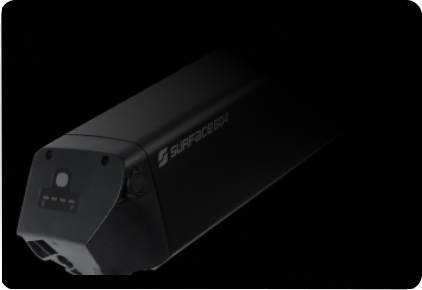

Included: 48V 20Ah / 960Wh Samsung lithium-ion 21700 cells
Battery Range
Upto 65mi (105km) with a 48V20Ah Battery
Battery Charge Time
3-4 Hours for a Full Charge from Empty
Display Type

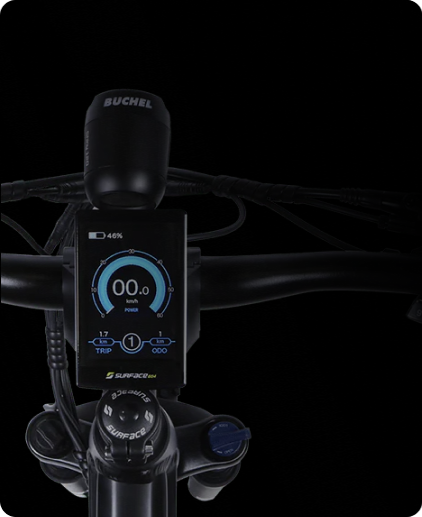

SURFACE604 Color LCD Display with USB Jack Bigger display: 3.5" for 2024
Lights
BÜCHEL "SHINY 120" front headlight with 120 lumens Pre-Wired To Connect Rear Stop Light
Frame & Suspension
Fork
SR SUNTOUR XCM 32. 29er, 100mm with Axle Thru Hub
Frame Type
Straight steerer Headtube, Custom Reinforced Battery Mounts, Internal Cable Routing, Post Mount Brakes
Frame Material
6061 Aluminum Alloy
Stem
eMTB specific Ergotec Bass 31.8mm
Handlebar
PROMAX Aluminum, 60mm Rise With 9° Backsweep and 720mm Wide
Components
Derailleur
SRAM X5 9-Speed 1-Piece Forged CNC with 2 Sealed Bearings
Cassette
SRAM 12-34T
Shift Levers
SRAM X5 Trigger Shift
Brakes
TEKTRO Dorado eMTB Specific Hydraulic Disc, Quad Piston, 180mm Rotor with Motor Inhibitors
Crank Set
SAMOX 38T Front Sprocket, 170mm Crank Arms
Rotors
180mm Front/Rear x 2.34mm Thick
Bottom Bracket
SAMOX Sealed Bottom Bracket
Pedals
WELLGO Platform, with Die Casting Body, Gold Color
Chain
KMC 9-Speed, Gold Color
Seat Post Diameter
30.4mm
Saddle
SR Selle Royal "Nebula" High Density Silicon Gel Royal GEL material soft and comfortable
Wheels/Tire
MAXXIS REKON+ 27.5” x 2.8” Skinwall tires (3C, Exo casing tech)

Included in the Box

  • Long-Range Battery

  • Water Bottle Bosses

  • LED Headlight

What Our Customers Say

Read real reviews and questions from people that have already bought this bike.

See it In Action

Our Electric Mountain Bikes are Ready to Climb Anything.

Make your next outdoor adventure electrifying. Built-in torque sensors deliver power in proportion to your pedalling, and high-quality off-the-shelf components make maintenance and part replacement a breeze. Designed and engineered in Canada, these ebikes are built for responsive riding on rugged terrain.

Shop Electric Mountain Bikes

Get Decked Out

Want to take your ride to the next level? Hit the road with the accessories and extras you need to get the most our of your bike.

View Accessories
Ride Today

FAQs

How do I find the right bike size?

A rider’s height is the best determinant for size with S/M (17.5” frame) optimal for people 5’2” to  5’7” and M/L (19” frame) ideal for those 5’8” to  6’6”.

How is my bike shipped, and when will it get here?

We ship with FedEx and UPS and it will take approximately five business days for your bike to arrive. Batteries are shipped separately.

Once I receive my bike, how much assembly is required?

The assembly required is minimal and step-by-step instructional videos are available for the Rook/Colt and Boar.
